Development Guidelines

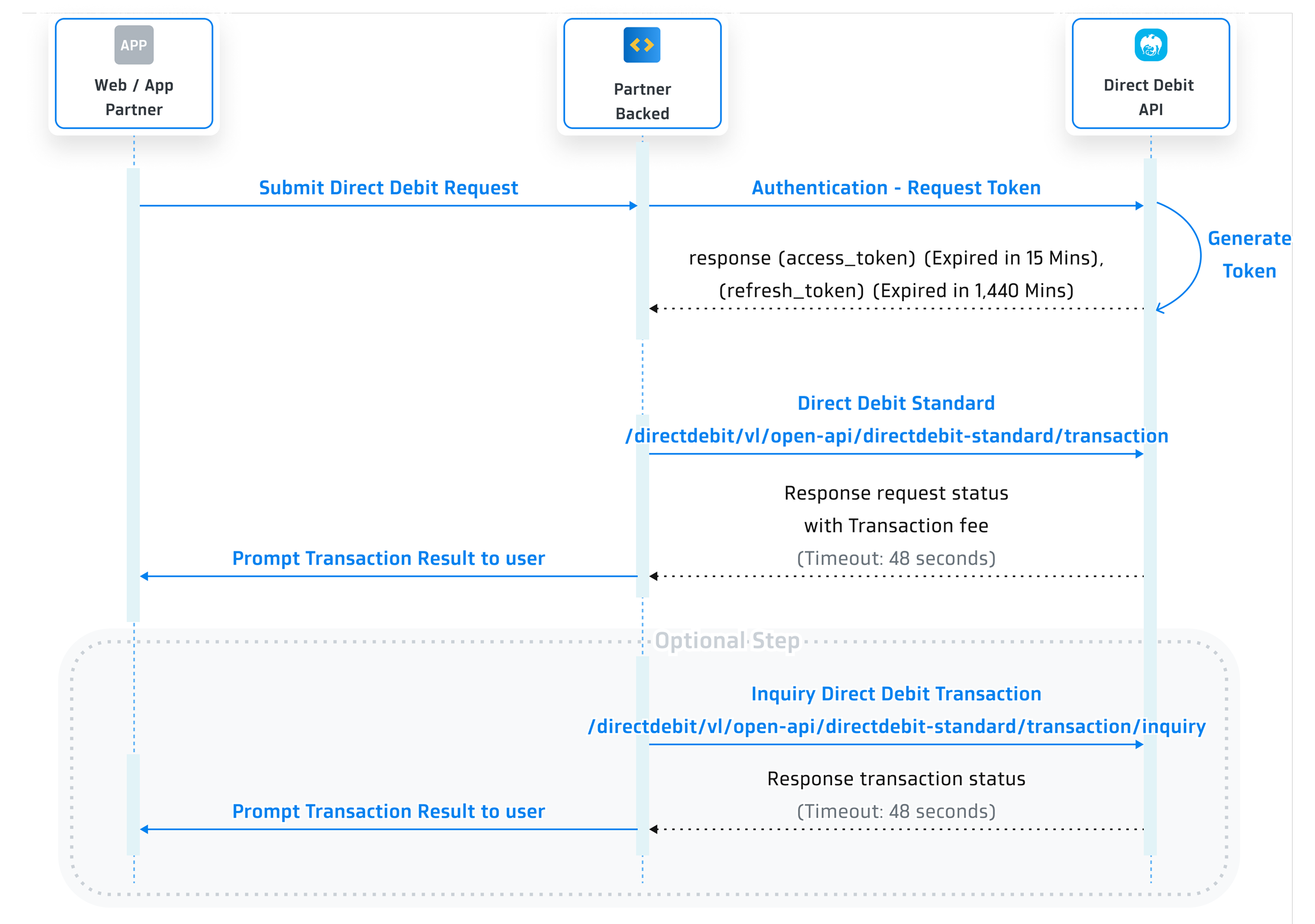

Sequence Diagram

Step 1 Get Client ID and Client Secret

Step 2 Initiate Authentication for Direct Debit Service

curl --location --request POST '{{baseUrl}}/oauth/authentication/api/v2/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'client_id=f79aa1fa-ba1e-464c-8a79-aacb8e4da725' \
--data-urlencode 'client_secret=f79aa1fa-ba1e-464c-8a79-aacb8e4da725' \

{
  "code": "0000",
  "message": "Success",
  "data": {
    "token_type": "BEARER",
    "access_token": "eyJhb**2aA11",
    "expires_in": 900,
    "refresh_token": "eyJhb**2aA55",
    "refresh_token_expires_in": 86400
  }
}

curl --location --request POST '{{baseUrl}}/oauth/authentication/api/v2/token/refresh'\
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'client_id=f79aa1fa-ba1e-464c-8a79-aacb8e4da725' \
--data-urlencode 'client_secret=f79aa1fa-ba1e-464c-8a79-aacb8e4da725' \
--data-urlencode 'grant_type=refresh_token' \
--data-urlencode 'refresh_token=eyJhb**2aA55' \

{
  "code": "0000",
  "message": "Success",
  "data": {
    "token_type": "BEARER",
    "access_token": "eyJhb**2aA11",
    "expires_in": 900,
    "refresh_token": "eyJhb**2aA55",
    "refresh_token_expires_in": 86400
  }
}

Step 3 Initiate Transaction for Direct Debit Service

curl --location --request POST '{{baseUrl}}/directdebit/v1/open-api/directdebit-standard/transaction' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {access_token}' \
--header 'x-request-id: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx' \
{
     "reqMsgHeader":  {
      "requestId": "1",
      "requestDateTime": "20201102 11:22:33"
      } ,
     "reqDirectDebitStd":  {
      "externalTxnId": "KTB20201102000001",
      "companyId": "AAAA000001",
      "ddrComCd": "0001",
      "txnDate": "20201102",
      "ddrRef1": "12345",
      "ddrRef2": "12345",
      "debitAccountNo": "0000119222",
      "creditAccountNo": "0000123456",
      "debitAmount": 10000.00
      }
}

 {
     "resMsgHeader":  {
      "responseCode": "0",
      "responseMessage": "Direct debit standard success",
      "requestId": "1",
      "requestDateTime": "20201102 11:22:33"
      } ,
     "resDirectDebitStd":  {
      "externalTxnId": "KTB20201102000001",
      "companyId": "AAAA000001",
      "ddrComCd": "0001",
      "txnDate": "20201102",
      "debitAccountNo": "0000119222",
      "creditAccountNo": "0000123456",
      "feeChargeFrom": "OUR",
      "feeAmount": 10.00
      }
}

Step 4 Inquiry Direct Debit Transaction Service

In this step, we will guide you on how to inquiry Direct Debit Transaction service. To proceed, you will need to provide the following information as outlined below.

ⓘ
Inquiry should be done at least 2 minutes after transaction for Direct Debit service.



HTTP Header

After the user finishes the authentication process, use the access token at the Header Bearer to call other standard service.

Parameter	Description
Content-Type	application/json
Authorization	Authorization code used to get an access token which is valid for 15 minutes.
x-request-id	This field is optional. Data must be in UUID format.




Request

Parameter	Type	Required	Description
reqMsgHeader	Object	Required	List of request ID. Please refer to reqMsgHeader
reqInquiryDdbTxn	Object	Required	List of inquiry direct debit transaction service. Please refer to reqInquiryDdbTxn
reqMsgHeader
requestId	string (20)	Required	Reference ID for the request.
requestDateTime	string (17)	Required	Requester Identifier Date and Time “YYYYMMDD HH:mm:ss” BKK Timezone
reqInquiryDdbTxn
externalTxnId	string (20)	Required	Reference ID of client’s request. (provided by partner)
companyId	string (10)	Required	Company ID
ddrComCd	string (15)	Required	Company Code DDR for checking the consent to debit from account
txnDate	string (8)	Required	Request Date. Format: “YYYYMMDD”

Example request:

curl --location --request POST '{{baseUrl}}/directdebit/v1/open-api/directdebit-standard/transaction/inquiry' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {access_token}' \
--header 'x-request-id: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx' \
 {
     "reqMsgHeader":  {
      "requestId": "1",
      "requestDateTime": "20201102 11:22:33"
      } ,
     "reqInquiryDdbTxn":  {
      "externalTxnId": "KTB20201102000001",
      "companyId": "AAAA000001",
      "ddrComCd": "0001",
      "txnDate": "20201102"
      }
}

Response

Property	Type	Required	Description
resMsgHeader	Object	Required	List of request header. Please refer to resMsgHeader
resInquiryDdbTxn	Object	Required	List of inquiry direct debit service. Please refer to resInquiryDdbTxn
resMsgHeader
responseCode	string (5)	Required	Response Status Code (0 = Success)
responseMessage	string (256)	Required	Detail of Response Status
requestId	string (20)	Required	Reference ID for the request.
requestDateTime	string (17)	Required	Requester Identifier Date and Time “YYYYMMDD HH:mm:ss” BKK Timezone
resInquiryDdbTxn
companyId	string (10)	Required	Company ID
ddrComCd	string (15)	Required	Company Code DDR for checking the consent to debit from account
externalTxnId	string (20)	Required	Reference ID of client’s request. (provided by partner)
txnDate	string (8)	Required	Request Date. Format: “YYYYMMDD”
txnStatus	string (10)	Required	Transaction Status “CMPLT” : SUCCESS “PRCS” : PROCESSING “FAIL” : FAILED Note: Incase inquiry more than 2 minute after exchange token for Direct Debit service, and response show “PRCS”. Please inform the bank to investigate Incase inquiry and response show “FAIL”, the system already reverse the transaction. You can check transaction status from financialReverseStatus
responseCode	string (5)	Required	Response Status Code (0 = Success)
responseMessage	string (256)	Required	Detail of Response Status
feeChargeFrom	String (3)	Required	Transaction fee will be charged from retail customer or company
feeAmount	Decimal	Required	Amount of transaction fee
debitAmount	Decimal	Required	Request transaction amount (2 precision)
financialReverseStatus	string (10)	Required	Refund Status to Debit Account “CMPLT” : Refund Successful “PRCS” : Processing “NO-TXN” : No debit client’s account “FAIL” : Failed Note: Incase status = “PRCS”. The system will retry reversing every 30 minutes until 23:50 Incase status = “NO-TXN”. The system try to reverse transaction but there is no debit at client’s account (End Status) Incase status = “FAIL”. The system cannot get internal status. Please inform the bank to investigate (End Status)

Example response:

 {
     "resMsgHeader":  {
      "responseCode": "0",
      "responseMessage" : "Inquiry direct debit transaction success",
      "requestId": "1",
      "requestDateTime": "20201102 11:22:33"
      } ,
     "resInquiryDdbTxn":  {
      "companyId": "AAAA000001",
      "ddrComCd": "0001",
      "externalTxnId": "202011020000000001",
      "txnDate": "20201102",
      "txnStatus": "CMPLT",
      "responseCode": "0",
      "responseMessage" : "Direct debit standard success",
      "feeChargeFrom": "BEN",
      "feeAmount": 10.00,
      "debitAmount": 10000.00,
      "financialReverseStatus": "CMPLT"
      }
}

Definitions of Response Codes

Response Codes


Response Code	Status Description	Debit Status	Note

Response Codes starting with SYS

SYS000	System Error	N	Inform Bank to investigate
SYS001	Invalid Message Format	N	Recheck requested message that is sent to Bank
SYS101	Adapter General Error	N	Inform the Bank to investigate
SYS102	Other Error from Bankend System	N	Inform the Bank to investigate
SYS103	Cannot update status after post CBS transaction	N/A	Inform the Bank to investigate and update transaction status
SYS400	Bad Request	N	Recheck requested message that is sent to Bank
SYS401	Unauthorized Service	N	Inform the Bank to investigate and update transaction status (Company ID and User Authen are not linked)
SYS404	Invalid Request Path	N	Recheck URL sent to the Bank




Response Codes starting with BSN

BSN001	Duplicate Transaction	N	Recheck External ID + txn. ID + Comp ID + Comp Code + Transaction date. Should not sent before
BSN002	DDR company code is not registered	N	Inform the Bank to investigate and update transaction status (DDR Company Code and Company ID are not linked)
BSN003	Requested Transaction Date must not be in the past Date or Future Date	N	Recheck Transaction Date sent to the Bank
BSN004	Transaction Failed	N/A	Inform the Bank to investigate and update transaction status
BSN005	Customer does not register direct debit	N	Recheck DDR service application status from both Company and Bank
BSN007	Invalid Credit Account No	N	Inform the Bank to investigate and update transaction status
BSN008	Transaction not found	N	Recheck External ID + txn. ID + Comp ID + Comp Code + Transaction date. Should not sent before
BSN011	Transaction Amount is over limit	N	Transaction is exceed the limit in company profile
BSN012	Out of service	N	Transaction is exceed the Cut off Time in company profile




Response Codes starting with CBS

CBS000	Core Banking Other Error	N	Inform the Bank to investigate and update transaction status
CBS001	Insufficient Funds	N	Inform the client to check Account Balance
CBS002	Invalid FROM account number	N	Inform the client to check Debit Account No.
CBS003	CBS: Restriction placed on account	N	Inform the client to check source account and destination account
CBS004	Account status is close	N	Account status is close
DDR000	DDR Profile is invalid	N	Inform the Bank to investigate and update transaction status
